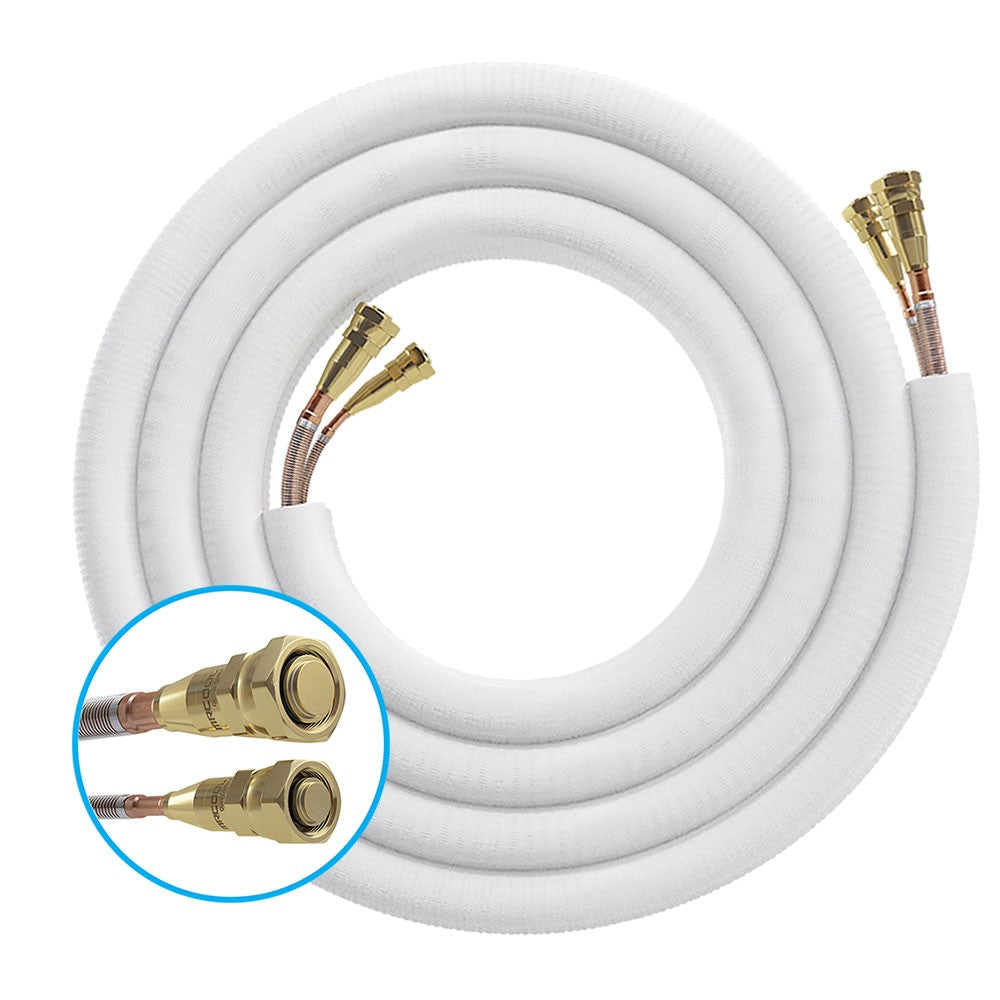

MRCOOL DIY Ductless Split System Line Set for 9k, 12k & 18k BTU. It is currently available in 16 and 25-foot increments and features a 1/4-inch liquid line and a 1/2-inch suction line.
This indoor line set is for MRCOOL DIY Ductless Split System. It is user-friendly, easy to install, and comes pre-charged and sealed from the factory with the correct amount of R-410A refrigerant.
It features Quick Connect fittings so that it can plug in easily to both the air handler and the condenser without losing charge or being exposed to environmental contaminants. To properly seal it, you will need a wrench and a hex key.
This line set will not function with any other MRCOOL products or any existing third-party ductless mini-split products.
Specifications
| Models | DIY16-1412; DIY25-1412 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
| Weight (lbs) | 10 lbs |
